4 axle low bed trailer

4 axle low bed trailer
Technical specifications, the main technical parameters



Rated (maximum) load mass (kg)            98,000

Dead weight (kg)                          18,000

Maximum total weight (Kg)                 80,000

Full load rating (maximum) speed (km / h)    80

Dimensions (length X width X height) (mm)   16600X3000X1850

Tire size                                9.00R22.5Radial

Rim size                                 22.5x6.75 (10 holes)

Tires no                                   16pcs

Axle type                               16 ton axle (BPW)

King pin size                       90 # (88.9mm) (or requested by user)

Frame type                             flat bed

Main beam material                     HG60(>620N/mm2,δs>62kg/mm2)

Braking                             double chamber braking on all the wheel(Wabco)

Landing gear                            Jost A-400

Paint                                    Rack and superstructure are painted in paint drying
oven by washing + Sanding + 2+1 coat Acrylic Paint 110um

Color                                   RAL color codes according to request

Electrical                                Electricity is provided by 7 pin plug from vehicle
There are necessary traffic advisory and stoplights on both sides
There are backlights, brake lights, license plate lamp, trailer reflectors and orange warning lights on the sides

Tool box                                     1pc

English manual                               1 set

http://www.heavyhaulagetrailer.com/low-bed-trailer.html

http://www.heavyhaulagetrailer.com/four-axle-low-bed-trailer.html

world first 1000kv AC transformer transport on road with ruiqianhe girder bridge

world first 1000kv AC transformer transport on road with ruiqianhe girder bridge

In April 27, 2017, it was an extraordinary day, because on this day, by the specific implementation of TBEA, the world's first 1000kV AC transformer analog transportation was officially completed! This is the embodiment of TBEA level promotion, and it is also the embodiment of the leap of our company's construction technology level. It's worth every one of us to be proud of!           Prior to this, ruiqianhe a series of previous experiments, through on-site meticulous cooperation, difficult construction, the transformer body smoothly transported to the designated location of analog orbit. TBEA installed the transformer accessories, and the site has all the necessary conditions for the analog transportation.           In the whole day of the simulation transport, the relevant leaders of the State Grid Company came to the scene to observe and guide, the experts of China Electric Power Research Institute to inspect, and I am responsible for organizing the construction. In the work units, the construction process smoothly, and we do pay attention to and grasp every detail, grasp the precise size, go all out to ensure that the whole simulation process is safe, stable and smooth transportation.           The successful completion of the simulated construction marks a new step in the transportation of our company.           Looking forward to the road of development in the future, we can continue to overcome new difficulties and achieve new achievements! We are also very grateful to TBEA company for its support and cooperation!

http://www.heavyhaulagetrailer.com/goldhofer-modular-trailer-multi-axle-p125.html
http://www.heavyhaulagetrailer.com/ModularTrailer.html

http://www.heavyhaulagetrailer.com/world-first-1000kv-ac-transformer-transport-on-road-with-ruiqianhe-girder-bridge.html

www.ruiqianhe.com

www.heavyhaulagetrailer.com

www.htegroup.net

www.modulartrailerchina.com
E-mail: heavytransportequipment@yahoo.com
E-mail: info@ruiqianhe.com

250 ton Drop Deck for Modular Trailer

250 ton Drop Deck for Modular Trailer
Product link: http://www.heavyhaulagetrailer.com/modulartrailer.html
Email: E-mail: heavytransportequipment@yahoo.com
E-mail: info@ruiqianhe.com

http://www.heavyhaulagetrailer.com/250-ton-drop-deck-for-modular-trailer.html



Main features of Drop Deck
•Box type design with high tensile steel of Q690
•Through steel flooring on the whole loading area
•In front and rear couple with module or gooseneck
•hydraulic routing and braking,and air routing inside of the beam

Ruiqianhe produced 250 ton Drop Deck, successfully finished the loading test in factory before delivery to client
www.ruiqianhe.com

www.heavyhaulagetrailer.com

www.htegroup.net

www.modulartrailerchina.com

8 transformer on ruiqianhe modular trailer in action

8 transformer on ruiqianhe modular trailer in action
At 10:50 on the morning of June 7, 2017, with "Yangkou Port, a buzz" sound, a 500 ton derrick hoisting eighth main transformer hanging is slowly off the hook, the transformer slowly fall onto the platform of modular trailer, Taizhou highway transportation project all construction personnel tension was finally able to get temporary relief, because this moment, marking the Taizhou project the 8 main transformers in Shandong section of the highway transportation task has been successfully completed, and safety.           The Taizhou project for the construction of Taizhou converter transformer, DC rated voltage is 800 thousand volts, and 1 million volts AC substation building in Taizhou, after the completion of the Taizhou Railway Station station will be the world's first UHV AC and DC fusion depth. The station is Ximeng - Taizhou + 800 thousand volts high voltage DC transmission project, the transmission capacity of the project reached 10 million kilowatts, is the world's first UHV DC transmission project million kilowatt. According to the plan, the project will start operation in August 2017.           Taizhou highway project transformer transportation task started in February 16, 2017, our company highway transportation group all construction personnel together, after nearly a hundred days of unremitting struggle, overcome a lot of difficulties, and finally the successful completion of the task. The project put into operation, and many city will benefit thousands on thousands of families.           The good in people! ruiqianhe exploit book will give you added a thick!
http://www.heavyhaulagetrailer.com/ModularTrailer.html

www.heavyhaulagetrailer.com

http://www.heavyhaulagetrailer.com/nicolas-model-modular-trailer-multi-axle-p124.html

www.ruiqianhe.com

www.heavyhaulagetrailer.com

www.htegroup.net

www.modulartrailerchina.com
E-mail: heavytransportequipment@yahoo.com
E-mail: info@ruiqianhe.com

goldhofer modular trailer 16+16 couple with girder bridge for transformer

goldhofer modular trailer 16+16 couple with girder bridge for transformer

The early morning of June 15, 2017 loaded with 400 tons of RQH girder bridge couple with goldhofer 16+16 line modular trailer carry of 1000kV transformer , so far, this project first transformer road transport mission completed successfully.           This transformer site segment transportation tasks: ship unloading loading port wharf in Tianjin, the 1000kV New River county highway transportation to Xingtai city Shijiazhuang substation, the entire 430 km or so. Although only 430 kilometers, but it is difficult 430 kilometers. Because the transformer quality is heavy, headroom, coupled with a number of road construction, part of the road transport is in the night before the rain, the entire transportation can be described as difficult ahead of the road. However, in the process of transportation, leaders at all levels to the company down to the frontline construction team to have a thought, a force to make, solidarity, teeth, efforts to overcome many difficulties, finally safely and successfully arrived at the scene, the successful completion of the transport task.
http://www.heavyhaulagetrailer.com/goldhofer-modular-trailer-multi-axle-p125.html



www.ruiqianhe.com

www.heavyhaulagetrailer.com

www.htegroup.net

www.modulartrailerchina.com
E-mail: heavytransportequipment@yahoo.com
E-mail: info@ruiqianhe.com

RQH modular trailer with one and half combination got awarded the trust to move a total of nine (9) transformers from the Port of Arica,Chile to CODELCO mining site.

RQH modular trailer with one and half combination got awarded the trust to move a total of nine (9) transformers from the Port of Arica,Chile to CODELCO mining site.

Six transformers of 250 ton single weight and three transformers of 275 ton each had to be moved cross the mountain.

The transport had to take place during the rain season which made certain parts of the available roads very complicated to pass.

Especially passing the valley, with a total combination weight of over 430 ton with angles going up and down by 15 %, required absolute qualified skills of the local team and our equipment equipment.

Delivering all of these factors through inhouse experts and equipment was the reason ,and got awarded this difficult project.
The team is qualified to execute this job and other similar tasks properly and safely.

http://www.heavyhaulagetrailer.com/ModularTrailer.html

www.ruiqianhe.com

www.heavyhaulagetrailer.com

www.htegroup.net

www.modulartrailerchina.com
E-mail: heavytransportequipment@yahoo.com
E-mail: info@ruiqianhe.com

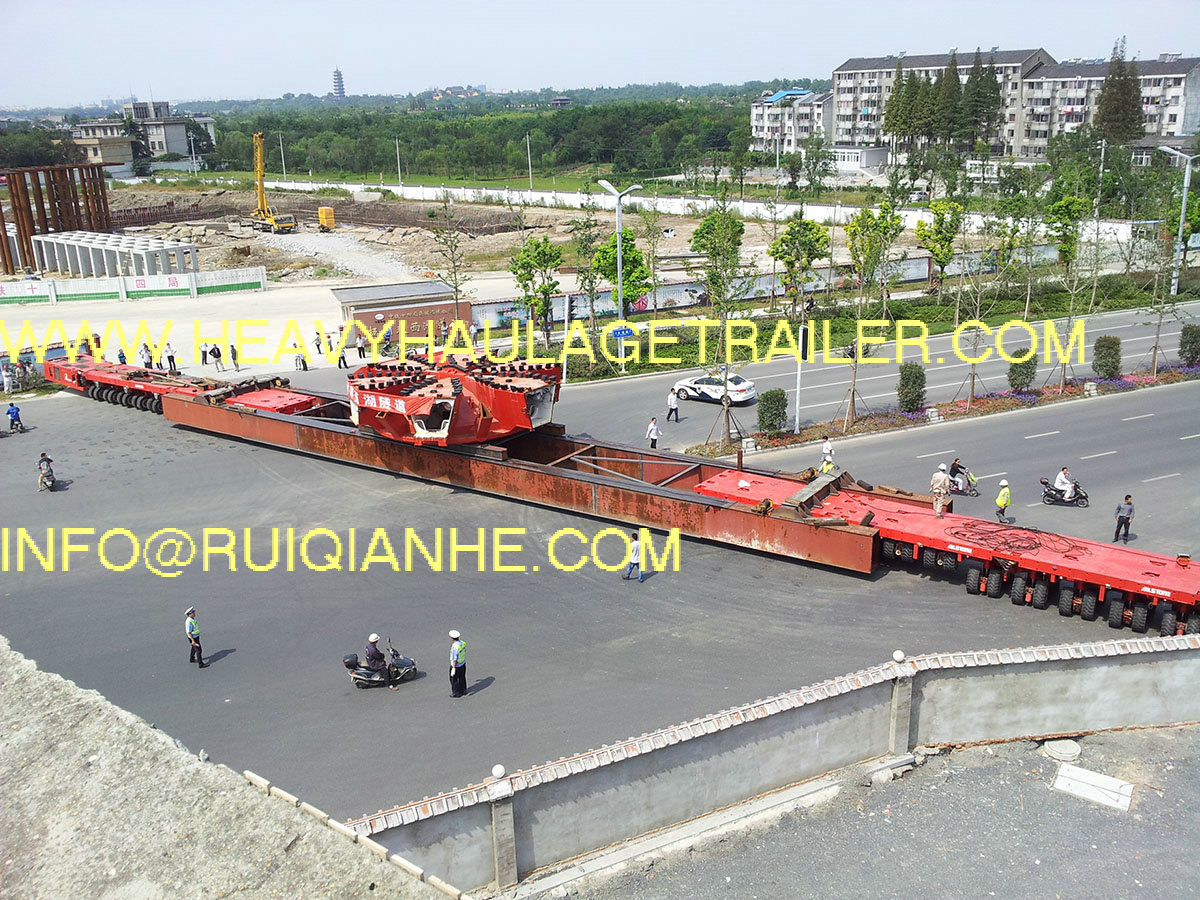

Tunnel boring machine carried by SPMT(self propelled modular trailer)

Tunnel boring machine carried by SPMT(self propelled modular trailer)

Ruiqianhe SPMT in China took care of the special inland transport of a tunnel boring machine from Yangzhou to Shanghai.

The components of this dimensions is
TBM shield 10.55 m diam.
Max. unit weight of 190 tons of single lift (Cutter head drive)
http://www.heavyhaulagetrailer.com/self-propelled-modular-transporter-spmt-spt-p126.html

www.heavyhaulagetrailer.com

www.ruiqianhe.com

Four Axle front loading low bed semi-trailer(detachable gooseneck low bed semi-trailer)

Four Axle front loading low bedsemi-trailer(detachable gooseneck low bed semi-trailer)

Product Description

Name of product: Four Axle front loading low bedsemi-trailer(detachable gooseneck low bed semi-trailer)

 Dimensions

 Overall length 19255mm

 Overall width 3300mm

 Overall height: 2000mm

 (The above dimension will be adjusted according to the tractor specification )

 Capacity

 Loading capacity: 100Ton

 Running gear

 FUWA or BPW or L1 high quality Trailer Axle 20Ton, Four Units;

 Tires: 315/80R22.5 16 PCS,

 Wheel Rim: 9.0-22.5 16PCS;

 Kingpin 3.5" bolted type.

 Longitudinal beams: Top flange 25mm, bottom: 30mm, middle thickness: 12mm. Height: 500mm, width: 220

 Platform: 5mm thickness checked steel floor

 Ramp: 2 units 600mm width spring ramps in front.

 Suspension: Spring suspension

 Brake system: Dual air brake system, relay valve made in China, no ABS brake system

 Rotary support: About 24 unit in two side of the trailer

 Small hydraulic pump station: Diesel, gear pump, starter, hydraulic cyclinder

 Accessories

 Tool box: 1 PCS.

 Painting

 Before the painting, surfaces and accessories are made smooth and then cleaned with a mixture of chemicals;

 Steel blasting completely;

 Painting color is according to customer's wish.

 Package

 Shipped by bulk vessel with whole unit. Package three unit together

Contact to get the detail and

http://www.heavyhaulagetrailer.com/Low-Bed-Trailer.html

www.ruiqianhe.com

www.heavyhaulagetrailer.com

www.htegroup.net

www.modulartrailerchina.com

E-mail: heavytransportequipment@yahoo.com

E-mail: info@ruiqianhe.com

Heavy wind turbine and Windmill Blades for transport

Heavy wind turbine and Windmill Blades for transport




RQH extendable trailer and modular trailer recently handled a heavylift cargo of wind turbine and Windmill Blades.

with the gooseneck and 6 line module which carry of 90 ton wind turbine of Vestas 1.5 MW turbine.

with 3 axle extendable trailer which with 3 section telescopic boom,which can extend up to 50 m,carry of the wind blade of 56 m in total length.

along with the 4 axle extendable trailer which with 2 section telescopic boom,which can extend up to 45 m,carry of the tower section of 70 ton and 35 m in total length.

www.heavyhaulagetrailer.comhttp://www.heavyhaulagetrailer.com/wind-blade-trailer-p129.html

In a separate operation the wind blade trailer also handled the discharge and inland transport of 90 pcs pipes with measurement 40 m x 2.94m x 3m weight 13 mt each and a cargo of reactor , heat exhangers and storage tanks of such trailers.

concret beam transport in bolivia by RQH modular trailer

concrete beam transport in bolivia by RQH modular trailer

Bolivia client extremely busy in recent weeks to move several heavy and oversized concret girder under narrow road and over by pass including some special precautions like moving overhead wires.

The scope of the first featured transport project included the movement of 60 oversized pieces bridge beams, the larges one with dimensions of 35,000 x 3,80 x 3,30 m and weight of 70 tons.

Their second project was about the movement of a series of heavy transformers with the heaviest unit weighting 156 tons and dimensions of 8,50x 3,00x 4,00 meters. The performance of these transportations was done by bolivia client with their own special RQH modular trailers.

http://www.heavyhaulagetrailer.com/nicolas-model-modular-trailer-multi-axle-p124.html

Ruiqianhe Goldhofer thp/sl was commissioned to carry a 32-meter-long rotary cooler in Malaysia.

Ruiqianhe Goldhofer thp/sl was commissioned to carry a 32-meter-long rotary cooler in Malaysia.

The cooler has a weight of 190 tons and 4.50 m in diameter. Due to the size and weight, it was not possible to bring this cargo directly by road to factory and it was necessary to find a suitable area where the transhipment from truck to barge had to be performed by using roll on and roll off.

After a successful examination of the track, the vehicle was then defined, a 22-axle trailer type Goldhofer thp/sl with turn table, and transport permits including requested approval of required structural analyzes were organized.

Due to the extreme hot weather in May, when the transport would have to take place, the river was flood, and the transport had to be postponed for 3 weeks until the river come to normal.

The transport with the total dimension of 52 x 4.50 x 5.50 m and 320 tons started in the end of May. A Mercedes 8 x 6 was used as pull truck and another supported the transport as a push truck. Due to the size of this cargo and the route course the transport was also accompanied with two supporting escort cars for a smooth transport.

Next morning the cooler was moved from truck into the barge by roll on and roll off

In Malaysia, the barge arrived side by side the waiting ocean vessel for the oncarriage to factory being its final destination.

http://www.heavyhaulagetrailer.com/goldhofer-modular-trailer-multi-axle-p125.html

Transformer transport with the Ruiqianhe modular trailer

Transformer transport with the Ruiqianhe modular trailer




250t transformer on Ruiqianhe modular trailer units transported in Argentina

250 ton transformer was loaded onto a hydraulic platform trailer combination with 2 vessel cranes. This involved a Ruiqianhe vehicle combination consisting of a 18 axle line modular trailer.
The transport was carefully manoeuvered by remote control between parked cars on both sides of the street up to the entrance of the substation. This particularly narrow entrance to the facility could easily be negotiated due to the excellent manoeuverability of the Ruiqianhe and the 55°steering angle. Once at the transformer box, the load was pulled into its final position with the help of rope winches using rails which were mounted under the transformer wheels.

For the delivery of the Ruiqianhe modular trailer, no additional transportation costs are incurred. The modular traileris simply coupled to each module axles and can be both on rough terrain as well as on public roads and motorways with speeds here reaching up to 80km/h at max.

http://www.heavyhaulagetrailer.com/nicolas-model-modular-trailer-multi-axle-p124.html

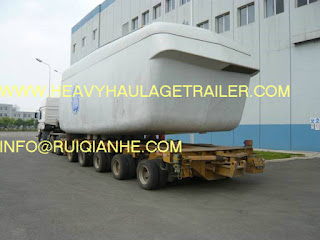

SPMT(self propelled modular transporter) hauls ship block

SPMT(self propelled modular transporter) hauls ship block

key words:self-propelled modulartransporter(SPMT);spmt;heavy transporter;heavy lift;self propelled trailers(SPT)

Ruiqianhe SPMT (self propelled modulartransporter) safely executed a challenging job of shifting four huge ship block in Keppel, in the china.

Keppel Heavy Industries, a singapore based company specializing in ship building,expecial on off shore engineer, had tied-up with Ruqianhe SPMT for all land transportation job in their china manufacture base. The scope involves haulage and positioning of three evaporators in nantong base, in the east coast of china.

The ship block started from the facility to jetty 5 Kilometers. The size of each ship block was 38 meter in Length, 15 meter in Width and 9 meter in height and its total weight is 860 tons including all steel beams.

SPMT (Self-Propelled Modular Transporter) had to move-in slowly at turtle speed to carefully maintain the of the cargo.

Another task came unexpectedly in the form of on-going road construction work on the stipulated route; due to which a new road had to be laid down, all the way upto the main entrance of the site. Heavy equipment were pressed into service to develop access path for SPMT. Despite initial hiccups, the first ship block reached its destination within 24 hours.

http://www.heavyhaulagetrailer.com/self-propelled-modular-transporter-spmt-spt-p126.html

four units detachable gooseneck low bed trailer for delivery to UAE

four units detachable gooseneck low bed trailer for delivery to UAE

with continue develop on the detachable gooseneck low bed trailer,now RQH have serial of such trailer,capacity from 40 ton up to 120 ton,axle from 2 axle up to 6 axle.
popular to use for middle east country,which easy for loading with crane and so on earth moving machine.

happy with the client,this year continue for delivery 4 units of detachable low bed trailer to U.A.E. from us.

http://www.heavyhaulagetrailer.com/low-bed-trailer.html

43m extendable trailer for wind blade of Vestas 1.5MW in action

RQH manufacture 3 axle flat bed semi trailer, extend to up to 43m in length, capacity 40 ton, with 200mm pneumatic suspension lifting stroke, suitable for different kind of wind blade.
www.heavyhaulagetrailer.com
pneumatic Suspension ( ± 100 mm)
 Hydraulic Steering ( ± 55° )
 Telescopic length up to 43 m
 optional 4 axle, 5 axle based on requirement
http://www.heavyhaulagetrailer.com/Wind-Blade-Trailer.html

container trailer for sale

RQH provide full range of container trailer for export,including triple axle container,40 feet standard container chassis,skelekon container chassie,terminal trailer,telescopic container trailer,gooseneck container trailer.for 20 feet,40 feet,45 feet,and ISO tank.


1、40 feet tri-axles spring suspension semi trailer
2、spring suspension；JOST gear landing：30T。
3、Yuek axles：13T，（3）,tread1820。
4、tyre：（11.00-20）（12） ；
5、rim：（7.5-20），（12）；spare tyre bracket：（2）
6、pin：（50）#；
7、lock：12

 http://www.heavyhaulagetrailer.com/containertrailer.html

43m extendable trailer for wind blade of Vestas 1.5MW in action

43m extendable trailer for wind blade of Vestas 1.5MW in action

RQH manufacture 3 axle flat bed semi trailer, extend to up to 43m in length, capacity 40 ton, with 200mm pneumatic suspension lifting stroke, suitable for different kind of wind blade.
www.heavyhaulagetrailer.com
pneumatic Suspension ( ± 100 mm)
 Hydraulic Steering ( ± 55° )
 Telescopic length up to 43 m
 optional 4 axle, 5 axle based on requirement
http://www.heavyhaulagetrailer.com/Wind-Blade-Trailer.html

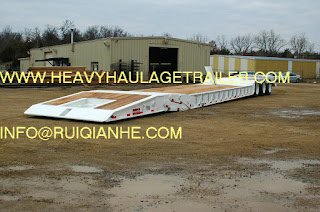

quad axle folding gooseneck low bed for delivery to middle east

quad axle folding gooseneck low bed for delivery to middle east

4 units of folding gooseneck low bed which with payload of 100 ton,with BPW axle,Double coin tubeless tire,Wabco relay and ABS is ready for delivery to middle east country.




along with the developing of the folding gooseneck trailer,RQH have make one serial produciton from 60 ton up to 120 ton capacity.




production well sell in middle east,africa and south america country for oil in gas and earth moving equipment especial of crane inland transport.

self-propelled modular transporter （SPMT)

Parameters of self-propelled modular transporter  （SPMT)
     Parameters of self-propelled modular transporter
The self-propelled modular transporter is a kind of high end product which is derived on the basis of hydraulic assembly trailer. The utility model is composed of a driving axle module transport vehicle and a power module unit (PPU). The module can be connected mechanically, and can be freely positioned, transporting goods up to ten thousand tons.
     Main assembly technical parameters

 1 power module unit technical parameters
   Length (mm)           3,770
   Width (mm)           2,980
  Height (mm)           850
 Lifting angle (DEG)           12
Self weight (kg)           6,000
 Engine manufacturer           MAN
 Engine type           D2876LUE604
 Engine power (kW/ RPM)           375/ 2000
  emission standard           Europe III
Fuel tank volume (L)           400
 Hydraulic tank capacity (L)           850
 Maximum operating pressure of drive system (bar)           410           Steering system maximum operating pressure (bar)           300
Electrical system (V)           28
   Remote control           Wire or radio


www.ruiqianhe.com

www.heavyhaulagetrailer.com

www.htegroup.net

www.modulartrailerchina.com
E-mail: heavytransportequipment@yahoo.com
E-mail: info@ruiqianhe.com

On the road with 160 tons in Kenya

On the road with 160 tons in Kenya

PN MASHRU recently sent one of their skilled drivers and a modern truck carrying oversized part for a TBM machine, with width of 3,20 meters, from Mombasa to Nairobi in Kenya. Including the way back to Mombasa the journey totalled over 1,200 kilometres and it took more than two weeks’ time. PN MASHRU has handled a significant projects in Kenya by our modular trailer within the last couple of years.

The transport went very well, as planned, the equipment and the driver endured the rough road,although the temperature up to 55 degrees Celcius at its worst.

“We have shown once again that we are a reliable partner for our customers. The operation clearly demonstrated that they can rely not only on the best and most innovative technology available on the market today but also on our competence and expertise in terms of project management. That is the extra that makes all the difference in tricky and challenging situations,” says Dipesh Mashru, CEO PN MASHRU.

MT901101TDP type (special) front load trailer
Technical specifications, the main technical parameters


Loading capacity
-100,000kgs
HYDRAULIC LEGS-SUSPENSION BEAM-ENGINE
- Remote operated, hydraulic, 4 running legs. Each leg has a capacity of 25 tons
- Lombardini or Deutz engine that makes hydraulic legs activated for front loading
AXLE SHAFT
- 4 BPW axle with the capacity of 16 tons are used
- Spring suspension
- There are brake shoes and heavy brake levers
TIRES AND RIMS
- 315/80 R 22.5
- 12.00 R 22.5
- 11.00 R 20
- 10.00/20 R 22.5 Michelin or Bridgestone is option by client
ELECTRICAL EQUIPMENT
- Electricity is provided by 7 pin plug from vehicle
- There are necessary traffic advisory and stoplights on both sides
- There are backlights, brake lights, license plate lamp, trailer reflectors and orange warning lights on the sides
BRAKE EQUIPMENT
- Dual in line, air operated brake system
KING-PIN
- Jost king-pin
PAINT
- Rack and superstructure are painted in paint drying oven by washing + Sanding + 2+1 coat Acrylic Paint
COLOR
- It will be specified according to customer request
STANDARD ACCESSORIES
- 2 x 8 expanding brackets(300+300 mm)
- 2 x 8 load binding ring
- 1 x tool closet(in platform section on axle shafts)
- 1 x Tire weld and holder
- 1 x chrome water tank with the capacity of 60 lt.
- RAL color codes according to request
